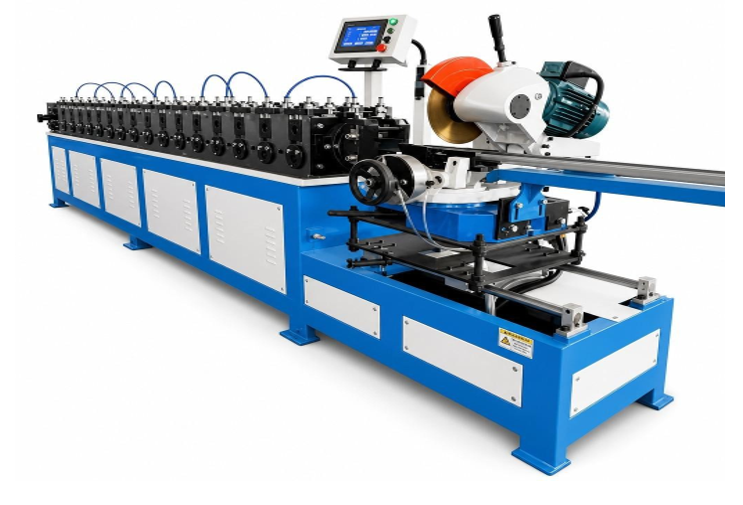

PROCESS FLOW:

• Unpowered loading rack–16 sets of roll forming hosts–straightening–cutting to length-manual unloading
• Unpowered loading rack–18 sets（reforcement rib type） of roll forming hosts–

straightening–cutting to length–manual unloading

 SPECIFIC STRUCTURE OF EQUIPMENT

• Discharge rack part
• Equipped with unpowered loading rack: 1 set
• Material size that can be placed: φ1600mm
• Inner hole expansion and contraction diameter: Ф450mm～Ф650mm
• Material width available: 230mm
• Material weight that can be placed: 600Kg
• Expansion and contraction type: manual
• With manual brake
