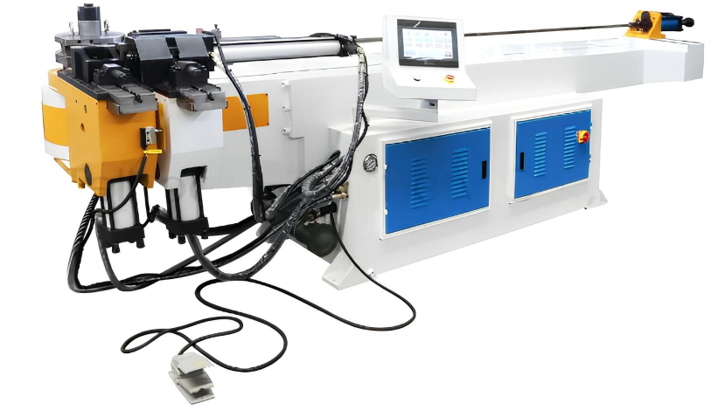

SEMI AUTOMATIC PIPE BENDING MACHINE MODEL : DW 75 NC


PROTECH

MACHINE DESCRIPTION

The Hydraulic Pressure Pipe Bending Machine is mainly used for bending several of profile parts with small radius, and the bending radius is usually 1.5 to 5 times the material cross section size. Change the bending die can be bent round, square, rectangle, L type, C type, H type, oval shaped and so on. Commonly used in automobile, motorcycle, airplane, ship, boiler, furniture, fitness equipment, recreational facilities, air conditioning and other fields, a wide range of applications.

  • Max. Bendable Pipe O.D. x Thickness: Ã¯â€žâ€š76.2 x 3 mm x mm
  • Min. Bendable Pipe O.D: Ã¯â€žâ€š16 mm
  • Max. Bending Radius:  R300 mm
  • Min. Bending Radius: R40 mm
  • Bending Angle (can be set): 1-180°
  • Bending Time (90°): 50 Deg/sec





Quick info

SKU: 8256634003 Categories: ,
GET A QUOTESpecs pdf download

Description

Model No.KM-A75-TNC
Max. bend low carbon steel round tube (3D)76.2 x 3mm
Max. bending stainless steel round tube (3D)76.2 x 1.5mm
Max. Bending mild steel square tube(3D) 60 x 60 x 2.5 mm
Max. Bending mild steel round bar(3D) 45 mm
Max. bending radius280 mm
Range of Bending Range0-190 degree
Mandrel Working Distance3000 mm
Bending Speed25 deg/sec
Bending Repeatability Positioning Accuracy±0.15 degree
Pump Motor7.5 KW
Hydraulic System Working Pressure 17.5 Mpa
Oil Tank Capacity190 liter
Dimension (L x W x H)4350 x 1050 x 1250 mm
Machine Weight2500 kg
