Description

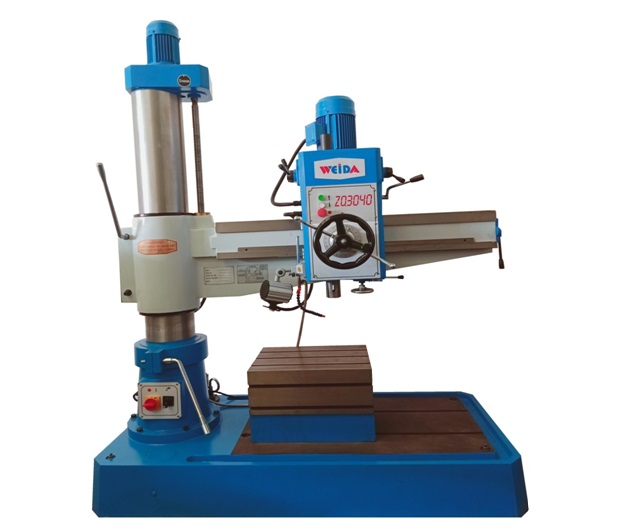

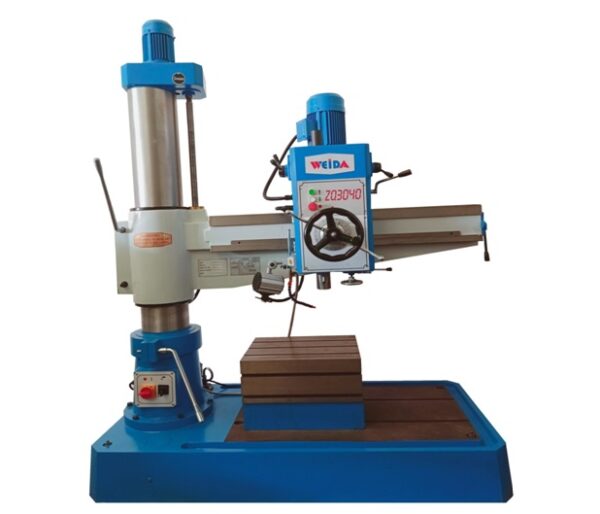

| RADIAL DRILLING MACHINE | |
|---|---|
| Brand Name | “WEIDA” |
| Model No | Z3040 x 13 |
| Max. Drilling Diameter (mm) | Iron 40 |
| Steel 32 | |
| Center line of the spindle to column (mm) | Max. 1300 |
| Min. 360 | |
| Horizontal traverse of spindle head | 950 |
| Distance from spindle nose to worktable (mm) | Max. 1050 |
| Min. 260 | |
| Spindle travel (mm) | 200 |
| Spindle taper | MT4 |
| Spindle speed (6 steps) r/min | 75,130,240,380,660,1200 |
| Spindle feed (3 steps) mm/r | 0.10,0.16,0.25 |
| Max. feed force permissible for the spindle (N) | 6300 |
| Vertical traverse speed of the arm (m/min) | 1.3 |
| Swivel of the arm | 360° |
| Main Motor power (Kw) | 2.2 |
| Elevating motor (kw) | 1.1 |
| Net weight | 1900 kg |
| Overall dimension (mm) | 1800 x 810 x 2200 |
