QUICK LOCKING BOLT ACCESSORIES
PRODUCT INTRODUCTION :

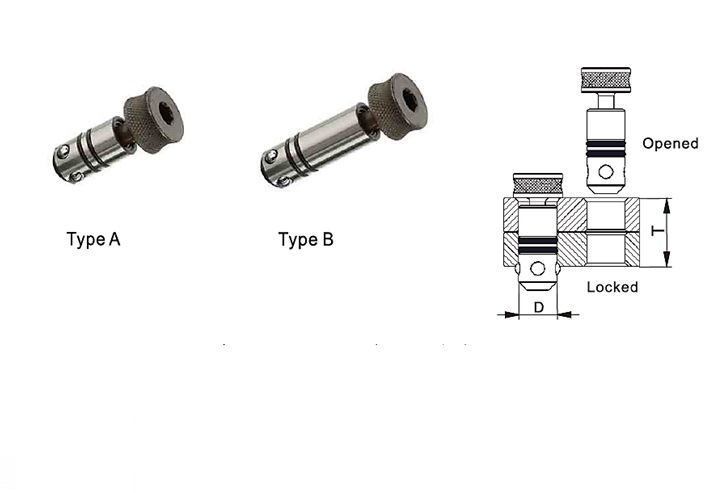

- For connecting two or three parts together.
- Type A for 2 parts connection and Type B for 3 parts.
- Use inner hex wrench to lighten.
- It is the main locking piece for Modular & Flexible welding fixtures.
Quick info
GET A QUOTESpecs pdf download
Description
| SPECIFICATION : |
| Type | Size(DxT) mm | D16 Part No. | Size(DxT) mm | D22 Part No. | Size(DxT) mm | D28 Part No. |
| A | 16 x 24 | YHD16KS1624 | 22 x 36 | YHD22KS2236 | 28 x 50 | YHD28KS2850 |
| B | 16 x 36 | YHD16KS1636 | 22 x 54 | YHD22KS2254 | 28 x 75 | YHD28KS2875 |
