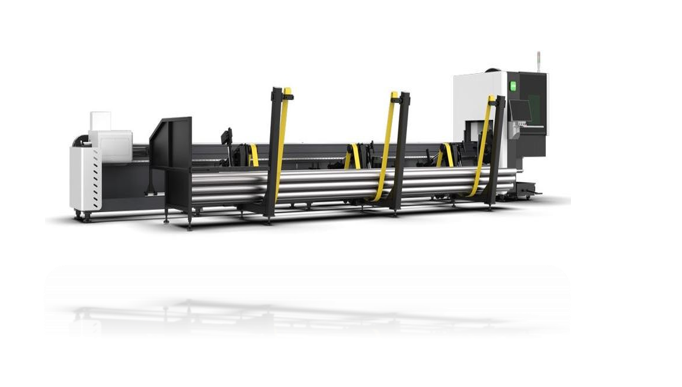

AORE TH6012 (V12) – 3000W Fiber Laser Tube Cutting Machine

The AORE TH6012 (V12) – 3000W is a fully automatic fiber laser tube cutting machine built for efficient, high-volume pipe and profile fabrication. Powered by a 3000W RAYCUS laser source and a BOCI Autofocus BLT310T cutting head, it processes tubes up to 6500mm in length, handling round tubes from Ø8mm to Ø120mm and square tubes from 8mm to 120mm. Configured with 2 chucks and 0 tailings — including automatic 6m loading and unloading with an air-conditioning stabilizer — it delivers running speeds up to 150 m/min, 2G acceleration, and chuck speeds up to 200 r/min for fast, repeatable cutting. Built on a heavy AORE Laser body and beam with China Innovance servo motors and drivers, Kofon reducers, and AORE Laser rails and racks, and driven by the FSCUT3000DE-A control system, it ensures stable, accurate performance across a wide range of tube sections.

The EU-standard separated electrical cabinet, HANLI water chiller, and integrated exhaust smoke system support safe, long-term operation, while the fully automatic loading device handles round, square, rectangular, track, and oval tubes with a maximum tube weight of 80kg. With an overall footprint of 9285 x 2806 x 2119mm and a 5325kg frame, the AORE TH6012 (V12) combines proven components with heavy-duty engineering for dependable, continuous tube production

MAIN CONFIGURATION

High-speed Tube Fiber Laser Cutting Machine

TH Series is an efficient laser pipe cutting machine, using side hanging bed structure, with intelligent and efficient, stable and material saving characteristics, is widely used in fitness equipment, fence partition, agricultural greenhouse, building ventilation pipe, shelf truss, metal processing and other industries.
