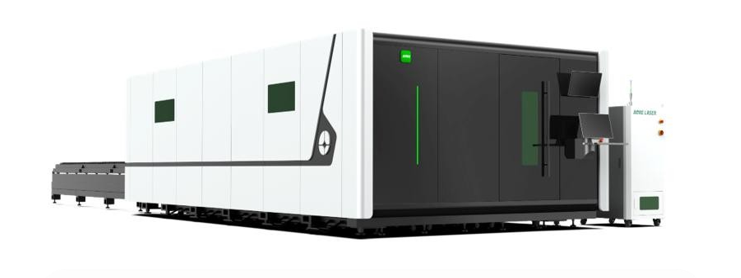

The PG6025 is a heavy-duty 12000W fiber laser cutting machine engineered for high-volume, high-precision sheet metal fabrication. Built with a AORE Laser body, beam, and X/Y-axis precision rails and racks, the PG6025 delivers stable, repeatable cuts across thick and thin gauge materials alike.

Key Specifications:

• Laser Source: 12000W RAYCUS — high-power multimode fiber laser with high electro-optical conversion efficiency and light-beam quality
• Cutting Head: BOCI Autofocus BLT442 (1030–1090nm wavelength, ≤15KW power, QBH/QD/QBH/ADD/EOC interface, M=2.0 spot magnification)
• Control System: FSCUT 6000 with CypCut software — single-chuck, multi-pulling control for improved cutting efficiency, beveling, and stability
• Electronic Control Cabinet: EU-standard strong and weak electrical separation cabinet
• Electrical Components: AORE Laser — highly stable electrical control components
• Water Chiller: HANLI
• Exhaust System: Dedicated exhaust fan for smoke extraction
• Total Machine Power: ~72.3kW
• Cutting Head Dimensions: 448mm x 122mm (Ø D)
• Head Weight: 6.1kg
• Storage Temperature: -25°C to +55°C (-13°F to 131°F)
