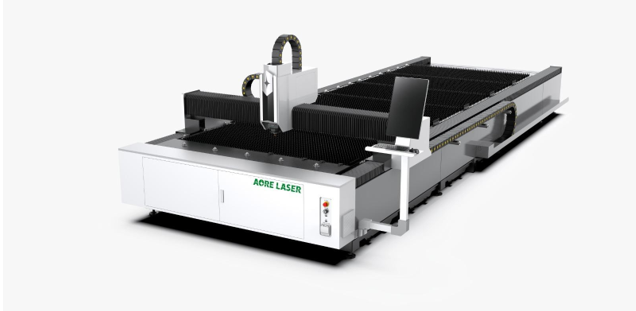

TSF F6020 – 20000W Fiber Laser Cutting Machine

F6020 – 20000W is a top-tier, high-power fiber laser cutting machine built for the most demanding heavy-plate fabrication operations. Powered by a 20000W RAYCUS CE European Version multimode continuous fiber laser source and a BOCI Autofocus BLT663H cutting head, it delivers exceptional cutting capacity across a 6150 x 2030mm working area — handling up to 50mm mild steel, 40mm stainless steel, and 40mm aluminium. Built on a heavy AORE Laser machine base with Innovance servo motors and drivers on all axes, Kofon reducers, and EtherCAT Bus control, it achieves positioning accuracy of ±0.05mm, repositioning accuracy of ±0.03mm, running speeds up to 150 m/min, and 1.5G acceleration.

The FSCUT6000 CNC system with a 21.5-inch industrial display, AORE standard chiller and dust extraction units, and integrated pneumatic and electrical components make it a robust, production-ready solution. Running on 380V/3Ph/50Hz with an overall footprint of approximately 8000 x 3500 x 2100mm and a 9000kg frame, and supplied with 6 waste-receiving trolleys (16 items), the F6020 – 20000W combines world-leading laser technology with heavy-duty engineering for consistent, high-volume output
