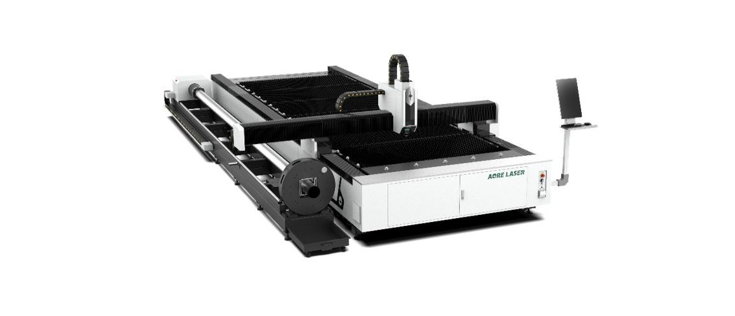

The F3015T6 (6000W variant) is a high-power fiber laser cutting machine built for combined sheet and tube processing, giving fabricators one platform for both flat sheet metal work and round/profile tube cutting. With a AORE Laser body, beam, precision rails, and racks, plus China-sourced Inovance servo motors and Kofon reducer, this model delivers accuracy and repeatable performance across a 3050mm x 1530mm processing format.

Key Specifications:

• Laser Source: 6000W RAYCUS — high-power multimode continuous fiber laser
• Cutting Head: Raytools Autofocus BM06K-CAT
• Control System: FSCUT 3000DE-M — EtherCAT control system for single-chuck pulling machines, improving cutting efficiency, supporting bevel processing, and ensuring cutting stability (CypCut software)
• Electronic Control Cabinet: EU-standard strong/weak electrical separation cabinet
• Electrical Components: AORE Laser — highly stable electrical control components
• Pneumatic Components: AORE Laser
• Water Chiller: HANLI
• Exhaust System: Dedicated exhaust fan
• Total Machine Power: ~39.8kW
• Table Load Bearing: 950kg
• Machine Dimensions: 8900 x 3750 x 2100mm
