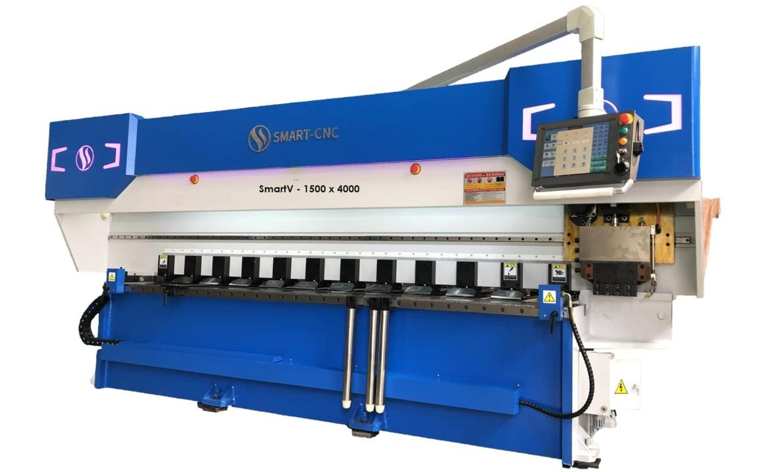

CNC Vertical V-grooving machine


SMART CNC

CNC V Grooving Machine is used to V-Cut, Groove or slots the Stainless Steel before the bending. Bending metal using V-grooving allows it to be folded to a tight radius or sharp corner. It is widely used in stainless steel decoration, elevator, security doors and other steel fabrication industries.



Quick info

Categories: ,
GET A QUOTESpecs pdf download

Description

MODEL SMARTV-1500 x 4000
BRAND NAME “SMART CNC”
Width of grooving 1500mm
Length of grooving 4000mm
Thickness of grooving (Stainless steel) : 0.3-6mm
Min. thickness of plate 0.5mm
Min. side distance : 8mm
X axis working speed 70m/min
X axis return speed 85m/min
Z axis max distance (back-gauge) 1250mm
Y1 axis resolution (Blades head) 0.001mm
Y1 axis resolution (Blades head) 0.001mm
X axis 4.5KW
Motor Power X axis : 4.5KW
Y, Z axis : 1KW
Machine size (L x W x H) 5900 x 2400 x 2110mm
Weight 12000 kgs
BRAND NEW CHINA



  1. It is the upgraded machine based on SmartV Series.
  2. With ball screw as powered driving component with higher precision, especially for high-end products.
  1. Hydraulic hold sheet metal with large and reliable holding forces as well as low noise and energy consumption.
  1. Frame type structure connected with high-strength bolt.
  2. The stress of working table relieved b electrical boiler with high rigidity and low deformation.
  3. Working table is made of carbon tool steel with HRC 55-60 degree hardness and ≤±0.03mm flatness to absolutely solve the low V slot precision problem due to deformed table.
  1. Fixed cross-beam, and sheet metal feeder in by back feeding device.
  2. With front and back supporter on working table to avoid scratching during processing.
  3. Easy CNC operating system with interlocking protection. The machine will automatically produce by inputting parameters.
  1. International standardized electrical components.
  2. With fan cooler in electrical cabinet.
  3. Remote monitor and control CNC system.
