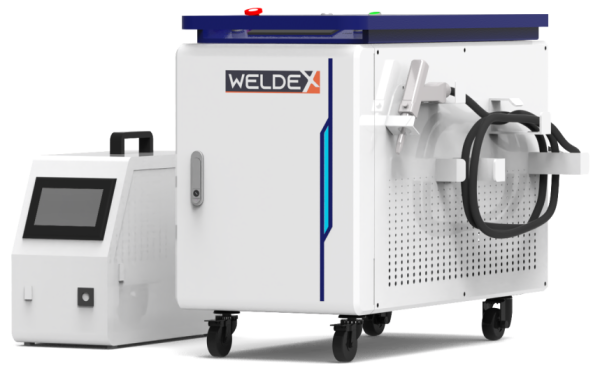

4-IN-1 LASER WELDING MACHINE


Weldex

The Weldex Laser Welding Machine from TSF delivers fast, precise, and clean welding performance designed for modern metal fabrication. Engineered for stainless steel, carbon steel, aluminum, and galvanized materials, it offers high-speed operation with minimal heat distortion, producing strong, smooth welds with little to no post-processing required. With user-friendly controls, stable laser output, and durable cooling systems, Weldex provides reliable long-term performance for workshops and industrial production lines—making it the ideal choice for businesses seeking efficiency, accuracy, and professional welding results.





Quick info

GET A QUOTESpecs pdf download

Description

Model: LW-1500W-15WW: LW-2000W-20WW: LW-3000W-30WW
Laser Power: 1500W: 2000W: 3000W
Laser Wavelength: 1070 ± 20 nm: 1070 ± 20 nm: 1070 ± 20 nm
Collimation Focal Length: F60: F60: F60
Focus Focal Length: F150: F150: F150
Protective Lens Specification: D18*2: D18*2: D18*2
Swing Width: 0-5 mm: 0-5 mm: 0-8 mm
Max. Supported Air Pressure: 0.6Mpa: 0.6Mpa: 0.6Mpa
Adjust Spot Light: dotted/line: dotted/line: dotted/line
Welding Material: Carbon Steel, Stainless Steel, Aluminium: Carbon Steel, Stainless Steel, Aluminium: Carbon Steel, Stainless Steel, Aluminium
Effective Penetration: 3-4mm: 3-4mm: 3-5mm
Cooling System: Water Cooling: Water Cooling: Water Cooling
Supported Languages: 18 kinds: 18 kinds: 18 kinds
Power Supply: 380V/ 3-Phase/50 or 60 Hz: 380V/ 3-Phase/50 or 60 Hz: 380V/ 3-Phase/50 or 60 Hz
Overall Dimension (L x W x H): 1000 x 621 x 810 mm: 1000 x 621 x 810 mm: 1000 x 621 x 810 mm
Machine Weight: 145kg: 150kg: 158kg
Wire Feeder Weight: 9.2kg: 9.2kg: 9.2kg
