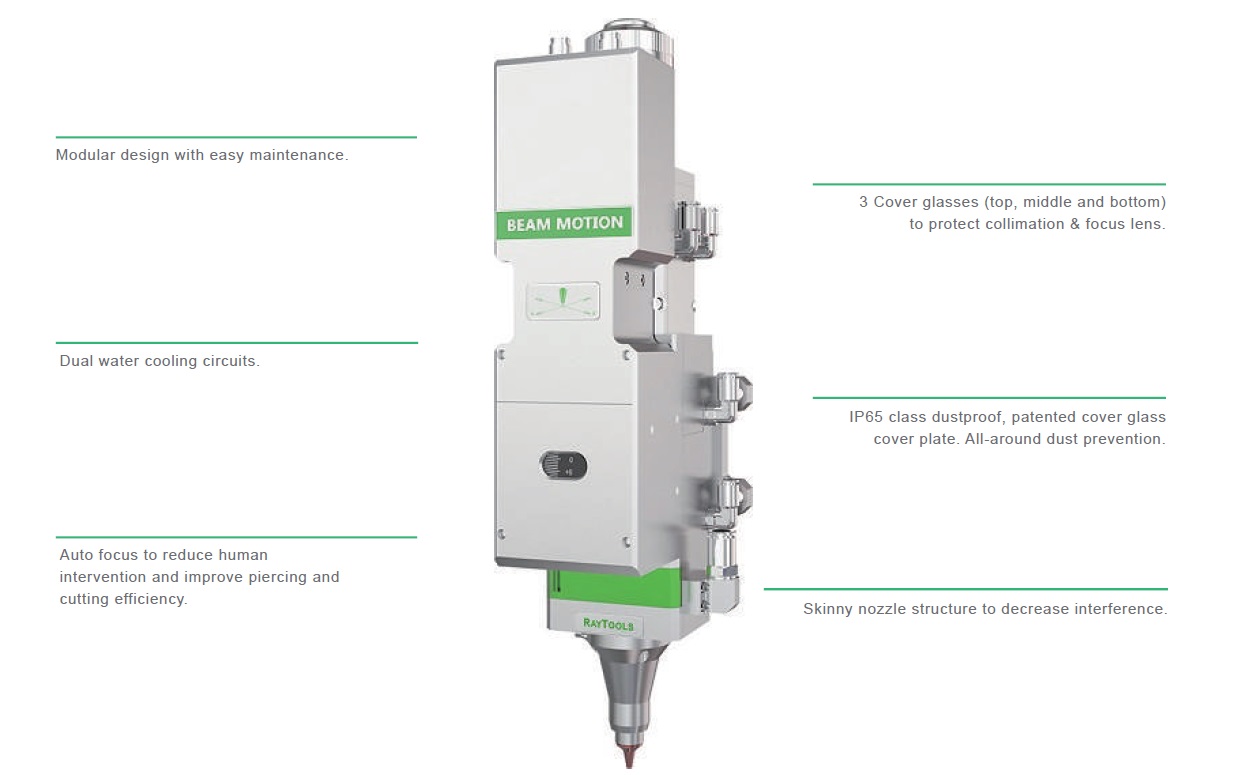

bm111tc laser tube cutting head

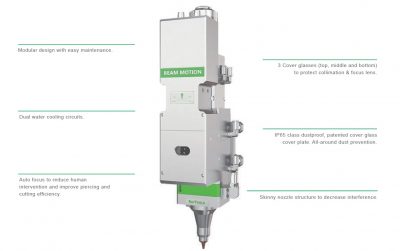

bm111tc laser tube cutting head

RAYTOOLS BM111TC AUTO FOCUS LASER TUBE CUTTING HEAD


RAYTOOLS

MACHINE DESCRIPTION:



Raytools Laser Cutting Head is equipped with Auto Focus Laser Cutting Laser Technology. It has the ability to cut High Thickness in High Speed at Lower Cost of Consumables. Lastly, it has anti-collision design and height adjustment sensitivity.



POWER RATING:  3kw  Auto Focus Laser Tube Cutting

Quick info

Categories: ,
GET A QUOTESpecs pdf download

Description

MODEL: BM111TC
Fiber Interface: QBH , QD
Clear Aperture: 28mm
Auto Focus
Range: +10 ~ -12mm
Acceleration: ≤ 10m/s²
Velocity: ≤ 10m/min
Accuracy: ≤ 50μm
Cover Glasses
Collimation Side (Top): Φ24.9*1.5mm
Focusing Side (Bottom/Middle): Φ27.9*4.1mm
Collimation Length: 100mm
Focus Length: 155mm , 200mm
Nozzle Styles: Single , Double , Custom
Diameter of Nozzle Tip: 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm
Assist Gas Pressure: ≤ 30 bar
Weight : 5.5 kg
  • Modular design with easy maintenance.
  • Dual water cooling circuits.
  • Auto focus to reduce human intervention and improve piercing and cutting efficiency.
  • 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
  • IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
  • Skinny nozzle structure to decrease interference.
